Automated Laser Welding

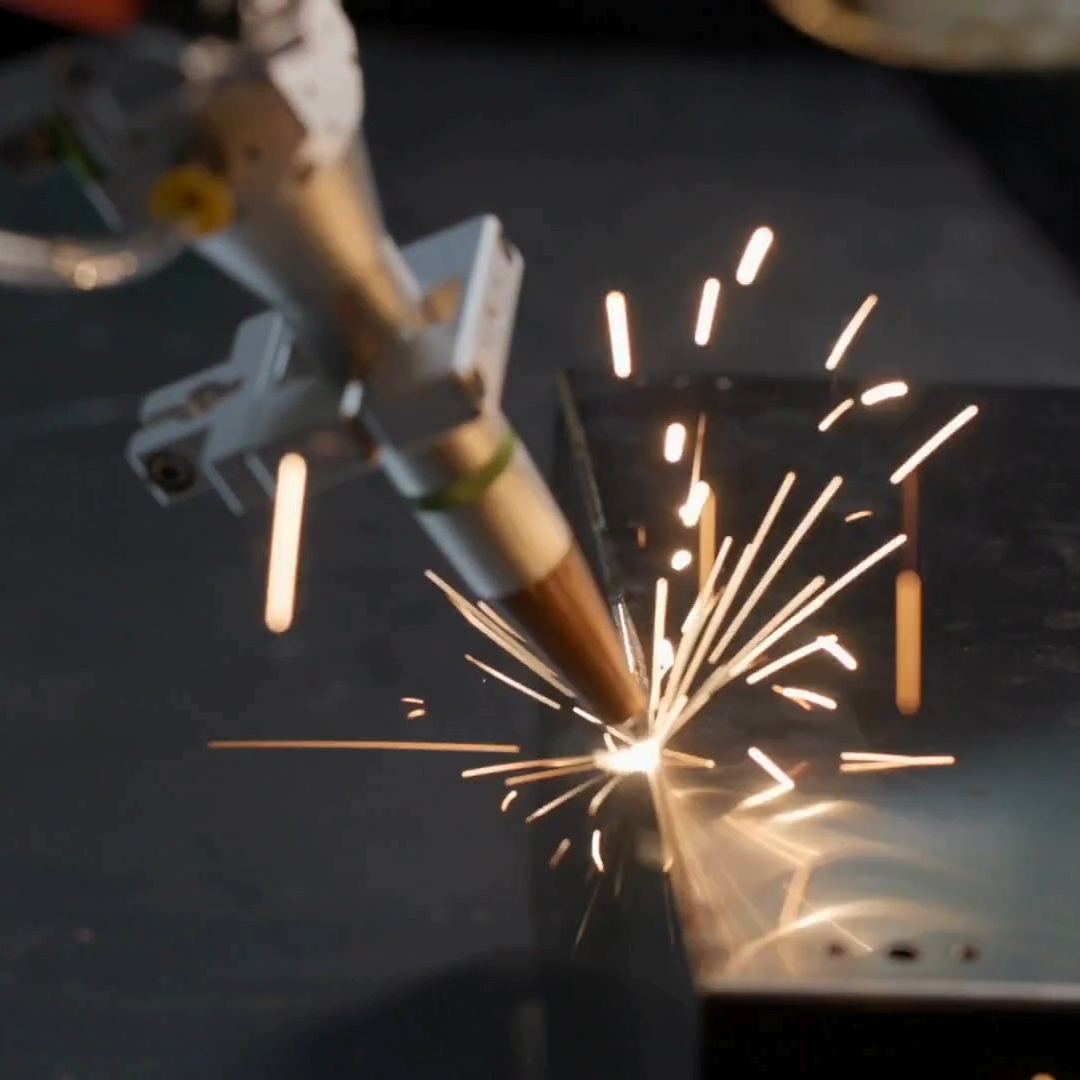

Robotic Laser Welding

Diodela laser welding systems offer multiple benefits for integrators, making them a preferred choice for integration. Our laser welding systems are designed with flexibility and modularity, allowing for easy integration into existing production lines. With high precision (up to ±0,02 mm) and Galvano-scanner speeds (up to 10m/s), our systems reduce cycle times and increase productivity. We provide advanced control systems, including vision and weld seam tracking, for precise parameter settings and real-time monitoring. Additionally, we offer tailored solutions to meet specific industry needs. Our comprehensive technical support and training ensure seamless integration and optimal performance.

  • Compatible with major brands:

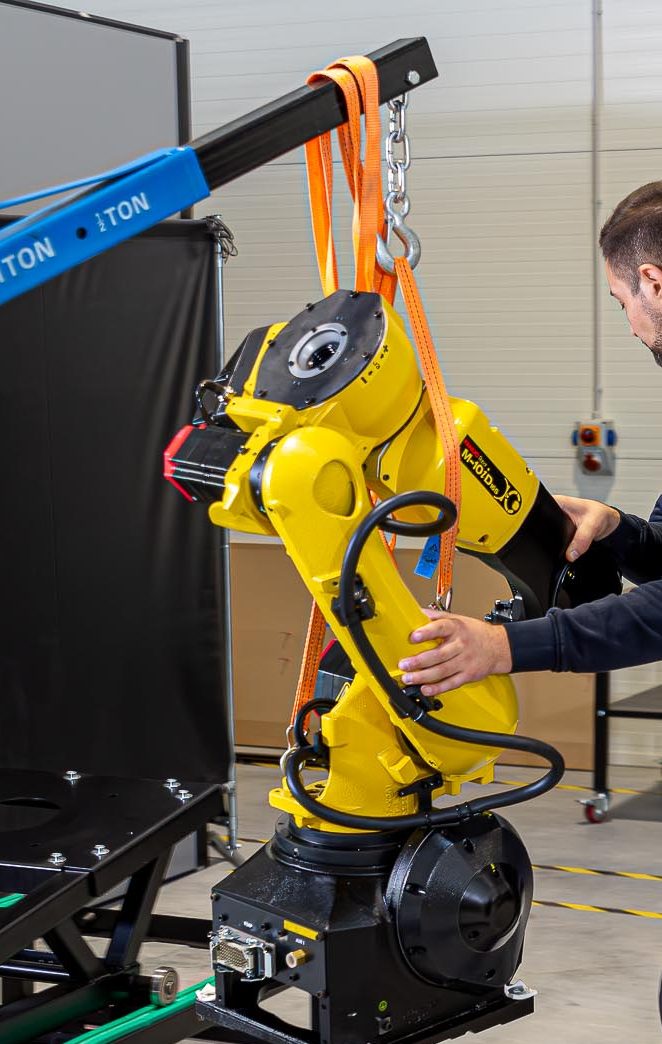

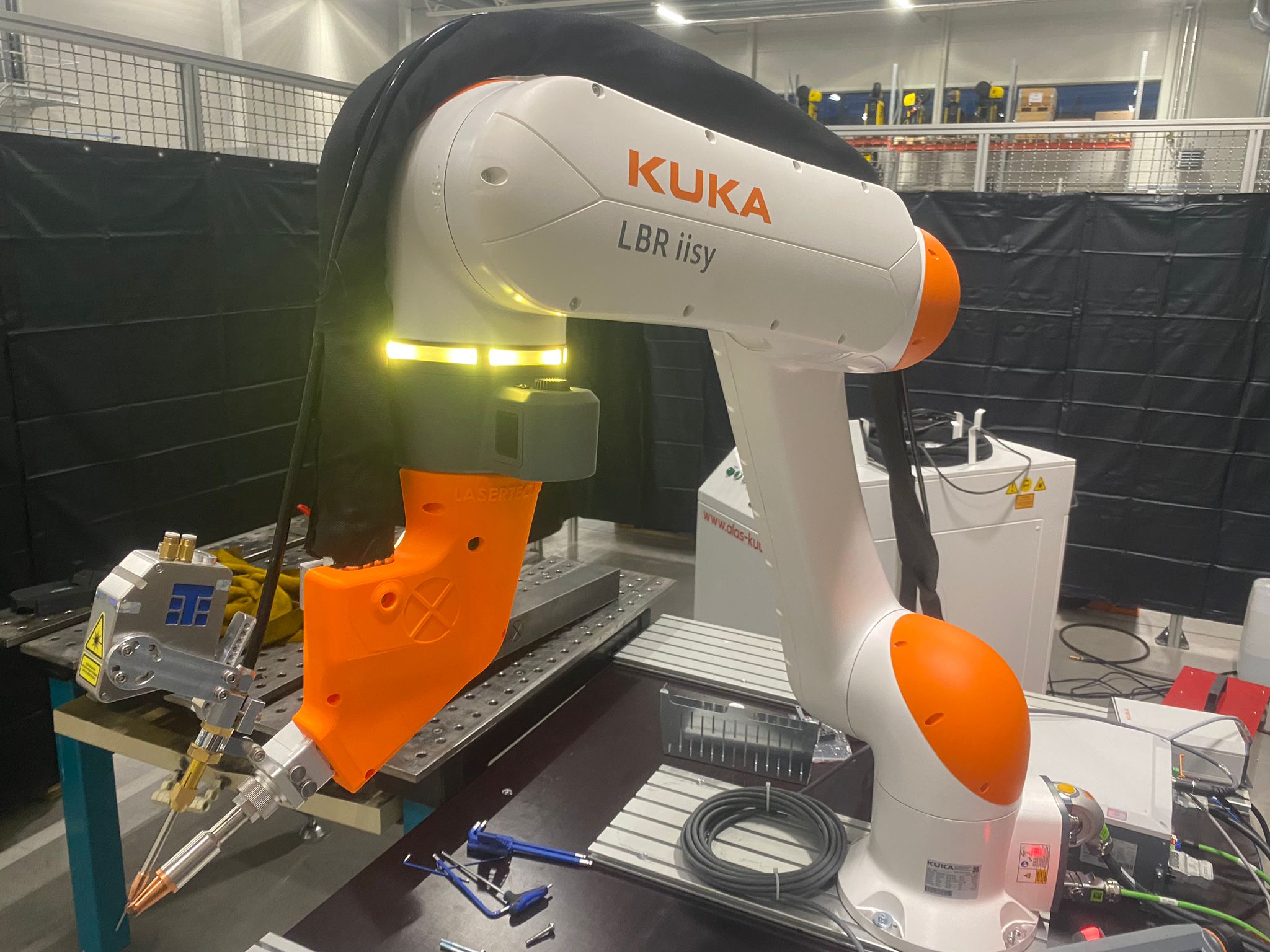

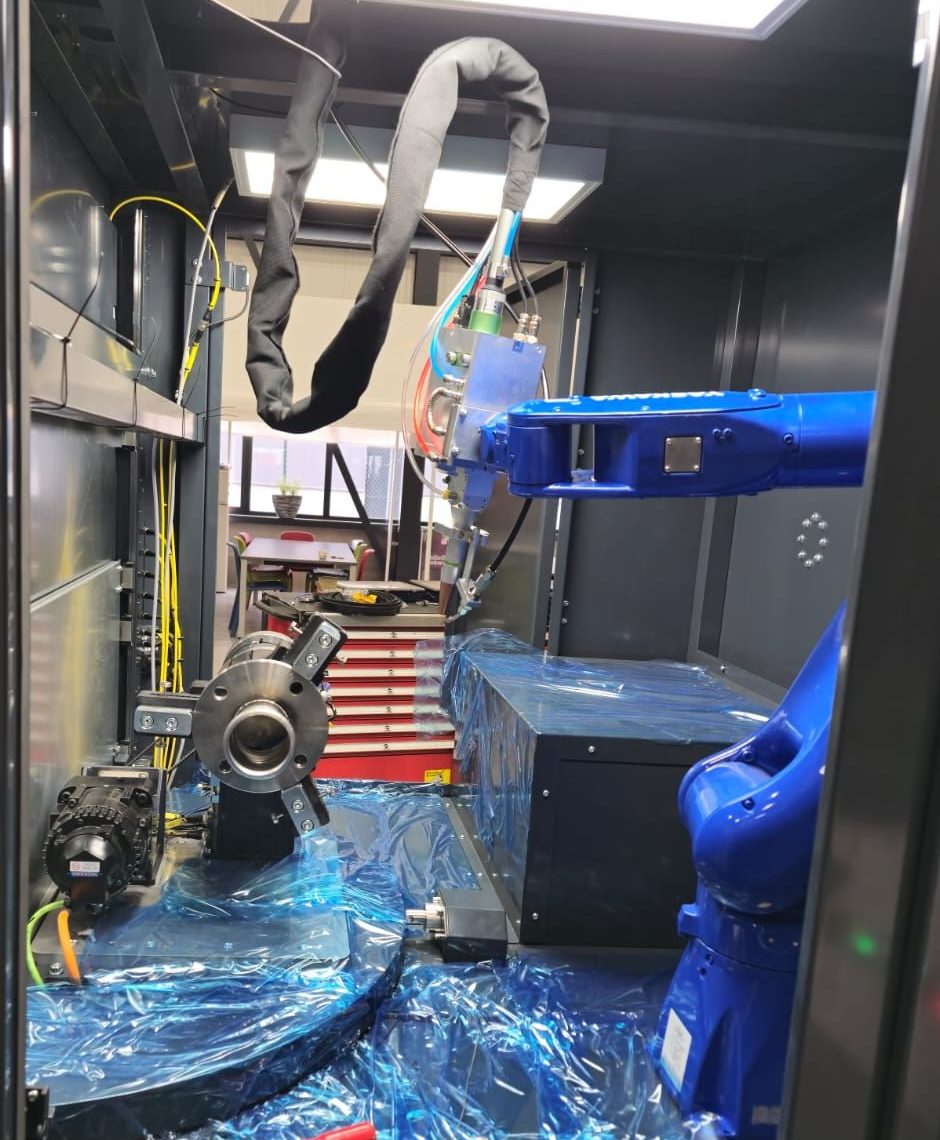

    FANUC (standard), YASKAWA, KUKA, ABB, UR (optional)

  • Advanced control systems

    vision and seam tracking.

  • High precision

    (up to 0.02 mm) and Galvano-scanner speeds (up to 10 m/s).

Handheld to Robotic Solution

The Diodela handheld laser welding system, integrated with a robot or cobot via a 2-channel logic, is the most affordable solution for clients seeking a lower initial investment and quick ROI. With speeds surpassing traditional methods by up to 10 times, Diodela’s water-cooled technology ensures impeccable welds with minimal distortion and oxidation across various metals including stainless steel, copper, aluminum, and more. Its user-friendly interface ensures quick setup and operation, making it easy to use. This system offers precision welding, delivering high accuracy for intricate welds in hard-to-reach areas. Enhanced safety features are in place to protect the operator. The robust design requires low maintenance, and our systems consume 40% less electricity than average MIG machines, such as when welding 3mm stainless steel.

  • Integration to robot or cobot:

    via 2-channel logic

  • Water-cooled

    designed for 24/7 non-stop operation

  • Manufactured in the European Union:

    compliant with EN safety standards

Our Recommendations

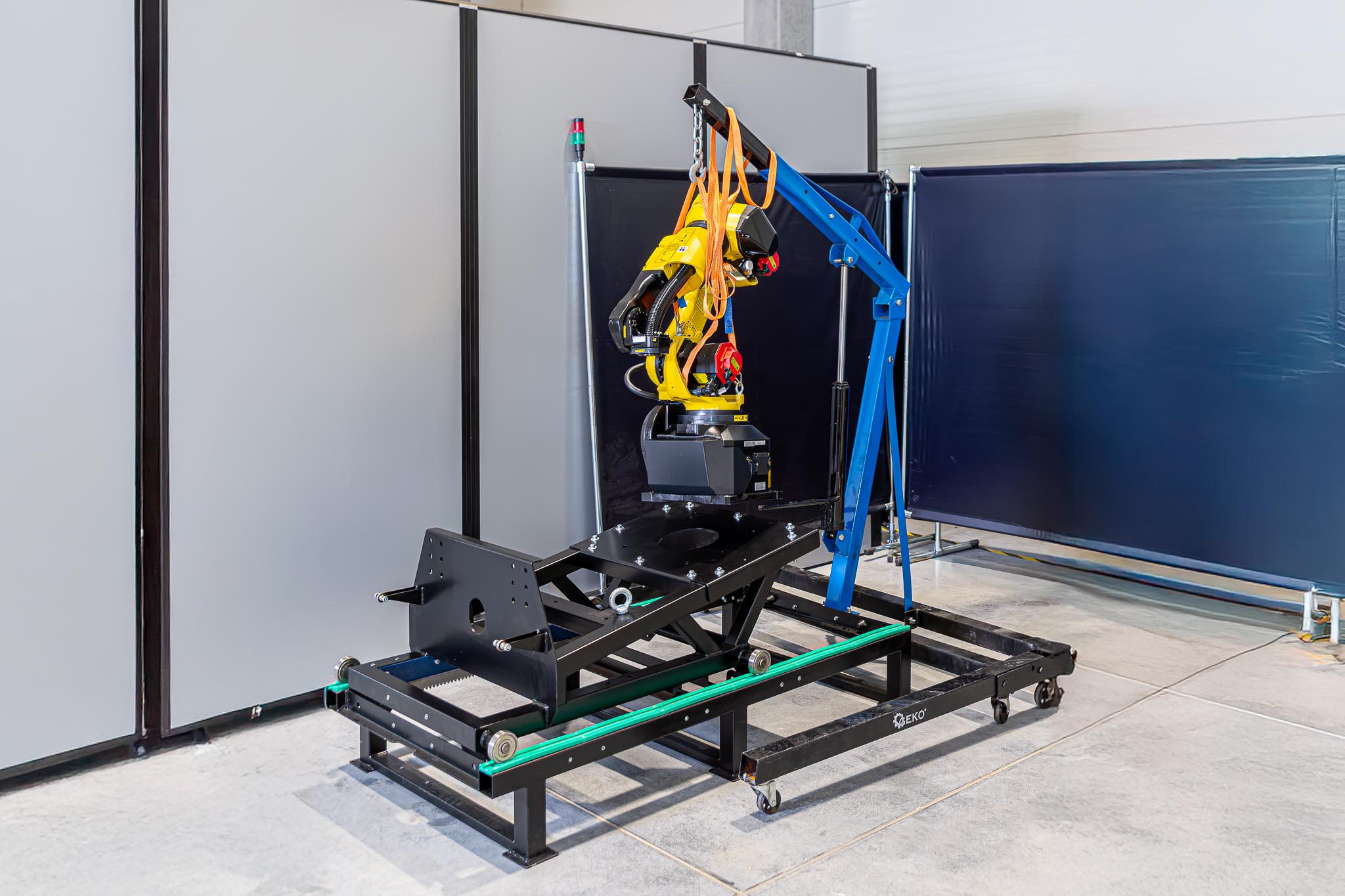

Automated Laser Welding Gallery

Specifications

Model FWS-1000-AS FWS-1500-AS FWS-2000-AS FWS-2500-AS FWS-3000-AS
Laser source Fiber laser
Output Power 1000W 1500W 2000W 2500W 3000W
Power adjustment range 10-100%
Wavelength 1080 nm
Output operation Continuous / Modulated
Modulation frequency Up to 50 kHZ
Power stability <3%
Adjustable wobble (weld width) 0.1-5 mm
Central focus distance Standard 120 mm (150 mm optional)
Cooling Integrated water cooling
Warm-up time 1 min.
Working humidity <70% (at 40 degrees Celsius)
Working temperature 0-40 degree Celsius
Laser welding gun weight < 1kg
Optical cable length Standard 8 m (up to 15 m optional)
Overall systems dimensions 1200 x 600 x 1300 mm
System weight 180 kg 185 kg 190 kg 195 kg 205 kg
Power supply Single-phase 230 VAC Single-phase 230 VAC Single-phase 230 VAC Three-phase 400 VAC Three-phase 400 VAC
Avg. power consumption <3.7 kW <5.5 kW <7.4 kW <9.3 kW <11.1 kW
Stainless steel weld thickness
(single pass)		 Up to 5 mm Up to 6 mm Up to 8 mm Up to 9 mm Up to 10 mm
Aliuminium weld thickness
(single pass)		 Up to 4 mm Up to 5 mm Up to 6 mm Up to 7 mm Up to 8 mm
Power 50W 100W 200W 300W 500W 1000W 1500W(CW)
100 µm Powder paint 1-2 m² / h 2-3 m² / h 4-5 m² / h 5-6 m² / h 6-7 m² / h  9-10 m² / h 10-40 m² / h
100 µm Rust 1-2 m² / h 2-3 m² / h 4-5 m² / h 5-6 m² / h 6-7 m² / h  9-10 m² / h 10-40 m² / h
